DIY Detachable cable / balanced conversion kit for Beyerdynamic DT770 DT880 DT990
£18.14
Only 2 left in stock
Description

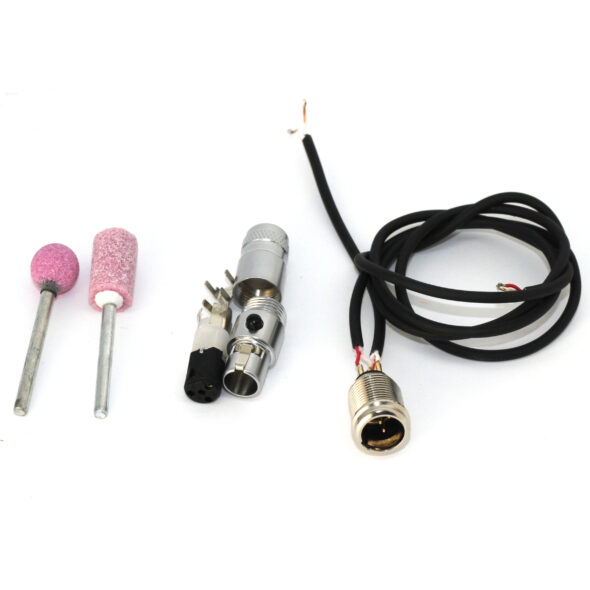

This kit comes with a 4 pin mini XLR socket with wires already attached and a matching 4pin miniXLR to attach to a cable. The kit also come with some burr tools to help you make an appropriately sized hole in the earcups.
Because it is a 4pin it can be used to convert them to take a balanced connection.
The pinout is
Pin 1 – L+
Pin 2 – L-
Pin 3 – R+
Pin 4 – R-
Check the installation tutorial for a step by step guide:
If you would like a fancy balanced cable to go with this there is a link below:
https://customcans.co.uk/shop/product/ultra-low-capacitance-balanced-litz-cable-with-single-4-pin-mini-xlr-for-dt177x-hdj-x10-and-modified-balanced-beyerdynamics/
If you order the cable at the same time, we will make you a custom litz headband cable for the socket at no extra cost.
We can not be held responsible for any damage caused by clumsy fitting. Please only order this kit if you are confident in your soldering ability and have an understanding of the circuitry involved. There is risk of breaking your headphones if this mod is not competently performed.
PLEASE NOTE: if you have the 100th anniversary DT770 Pros, please select ‘No, I will solder them on myself’ as the grommits on the headband cable are not removable.
(For customers outside of the UK only) Unfortunately, customs duties and fees may be charged when ordering from outside of the UK. This is outside of our control. we are NOT responsible for import duties and we will NOT write false information on a customs document in order to lower fees. All items have the UK tax removed and this will need to be paid by yourself when your item arrives at your local customs office. For a smoother process, please buy from our eBay store where VAT is paid at the same time: https://www.ebay.co.uk/str/customcans
Additional information
| Weight | 0.07 kg |
|---|---|
| Manufacturer |
someguy88810 (verified owner) –
I bought these for my dt770s, after watching the video, installation was very easy and most of the process was enjoyable! The only thing I had issues with was soldering the stock cable to the 4 pin mini xlr as it seemed the solder didn’t like to stay coated to the cable if that makes sense. However I bought this to replace the original cable anyways and every cable I’ve soldered since then has worked flawlessly so I assume Beyerdynamic changed their cabling at some point or (and very possible) my soldering skills are lacking but I haven’t had any complaints about them yet!
Mae –
I am mostly satisfied with my purchase, but I have two small issues.
Good things first. I bought two packs of this mod since both my brother and I bought 770 Pros and really enjoy them. This, in fact was my first ever modding project (I actually bought Dremel specifically for this). I am honestly happy with how it turned out. Besides, the result looks quite factory quality (despite some mess on the inside from inexperience with the dremel).
I have encountered two small problems though. I have 100th anniversary 770 Pros and the grommits on their headband cable are not removable, so I had to desolder the included cable and solder the original one to the connector. I think this should be mentioned on the website, since the service to presolder wires to the connector doesn’t make sense anymore.
The other one is that the grinding bit for the dremel is different from the two ones shown in the picture. It is a perfect bit for the job (cylindrical, with conic end) and it worked perfectly for me, but I wish the pictures reflected what customers are paying for.
Overall, these problems are small and easily solvable. Otherwise it’s an amazing modkit that I can highly recommend.
